flat die wood pellet mill

It is well-known that the flat die wood pellet mill is composed by a set of press roller, flat die, gear bearings and feeder equipped with diverse driven motor like electric engine, diesel engine, gasoline or tractor and so on. Compared with ring die structure, the flat die design can process oil cake and other different kinds of biomass materials into pellets as energy. Due to simple structure, this kind of machine is very suitable for home use, so it also called homemade wood pellet mill favored by lots of farmers.


Different motor to be chosen for you

Our company launches different engines to meet customers’ different requirements from different countries. Of course, we also design the machine according to customers’ demand. You can purchase the flat die wood pellet mill on the basis of your practical needs. Though the engine is various, each machine has both roller-rotating type and die-rotating type.

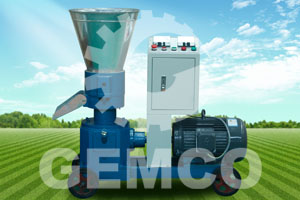

• Electric wood pellet mill is suitable for making wood pellets with sufficient electric power and is convenient to connect power

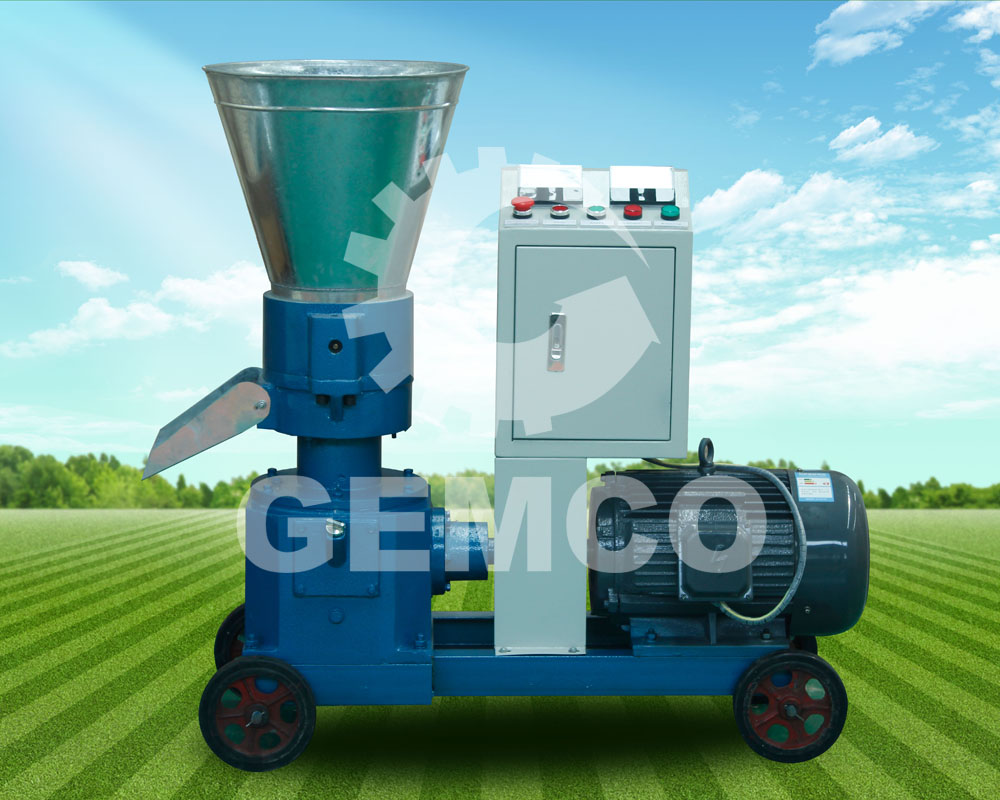

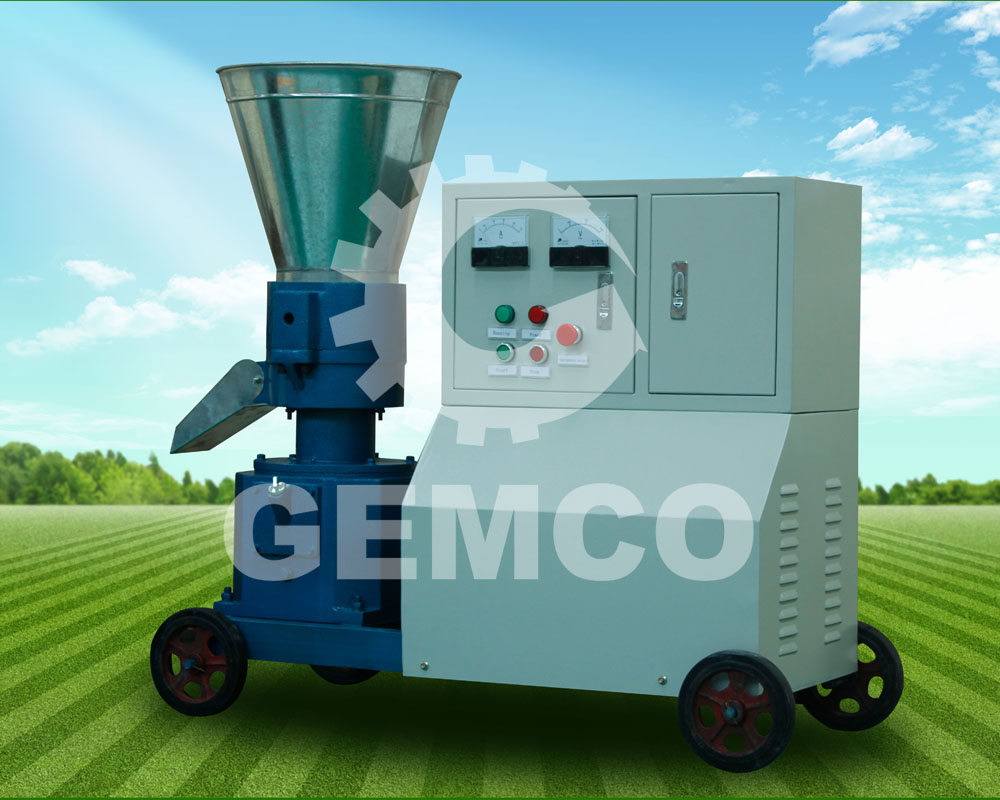

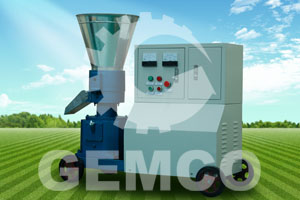

ZLSP-C Type (Covered Motor)	ZLSP-B Type (Motor)

Technical Parameter of Electric Wood Pellet Mill

Model	Power	Capacity	Weight（NW/GW	Packing Size
ZLSP200B	7.5KW (3phase)	80-120 kg/h	215/245kg	950*450*1050mm
		170-270 lbs/h	475/540lbs	37*18*41 inch
ZLSP300B	22KW (3phase)	250-350 kg/h	540/575kg	1350*750*1400mm
		550-770 lbs/h	1190/1268lbs	53*30*55 inch
ZLSP400B	30KW (3phase)	350-450 kg/h	770/810kg	1400*800*1450mm
		770-990 lbs/h	1698/1785lbs	55*31*57 inch
ZLSP200C	7.5KW (3phase)	80-120 kg/h	210/230kg	1050*550*830mm
		180-265 lbs/h	460/510lbs	42*22*33 inch
ZLSP260C	15KW (3phase)	160-250 kg/h	340/370kg	1240*580*1000mm
		350-550 lbs/h	750/815lbs	49*23*39 inch
ZLSP300C	22KW (3phase)	250-400 kg/h	425/465kg	1300*620*1100mm
		550-880 lbs/h	940/1025lbs	51*24*43 inch

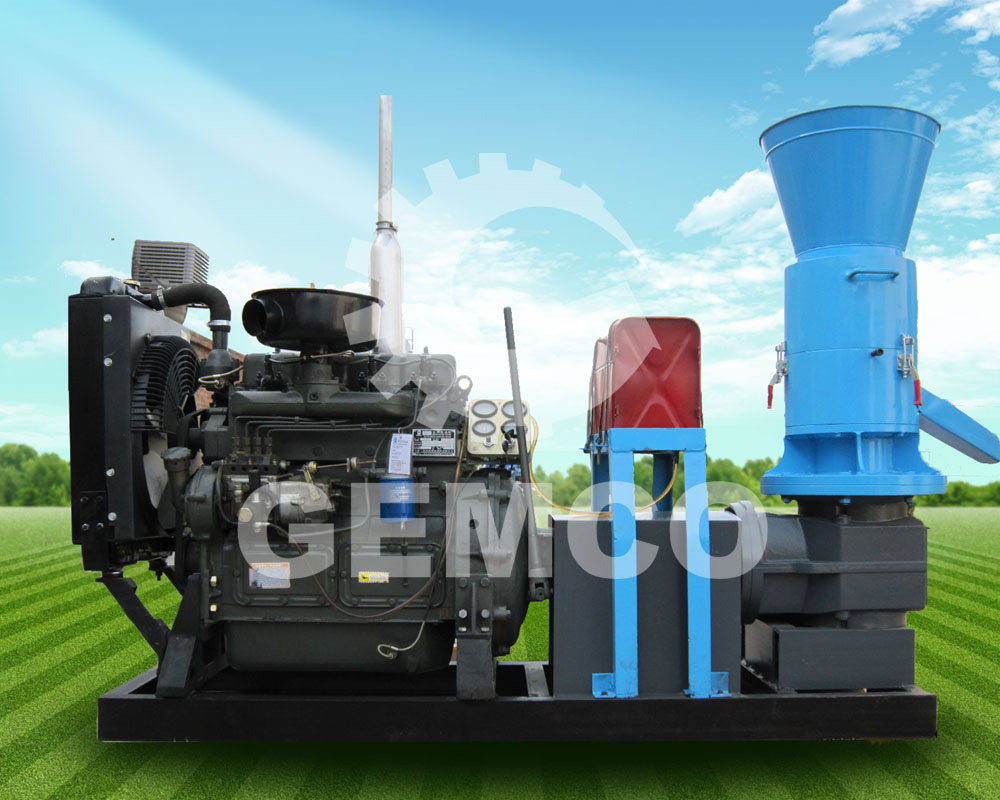

• While the power is not enough, diesel wood pellet mill is a good choice for you. As long as you prepare for plenty of diesel, you can make wood pellets anywhere you can

Technical Parameter of Diesel Wood Pellet Mill

Model	Power	Capacity	Weight（NW/GW）	Packing Size
ZLSP200A	15 HP	80-120kg/h	320/350kg	1460*950*1100mm
		170-270lbs/h	705/772lbs	58*37*55inch
ZLSP300A	36 HP	250-350kg/h	850/890kg	1100*700*2480mm
		550-770lbs/h	1874/1962lbs	43*28*98 inch
ZLSP400A	55 HP	350-450 kg/h	1010/1050kg	1300*800*2600mm
		770-990 lbs/h	2227/2315lbs	51*31*102 inch

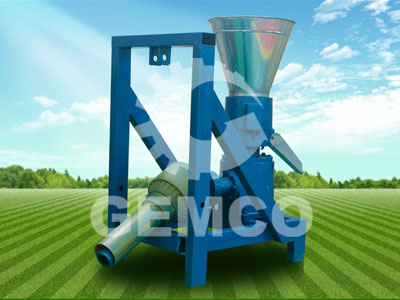

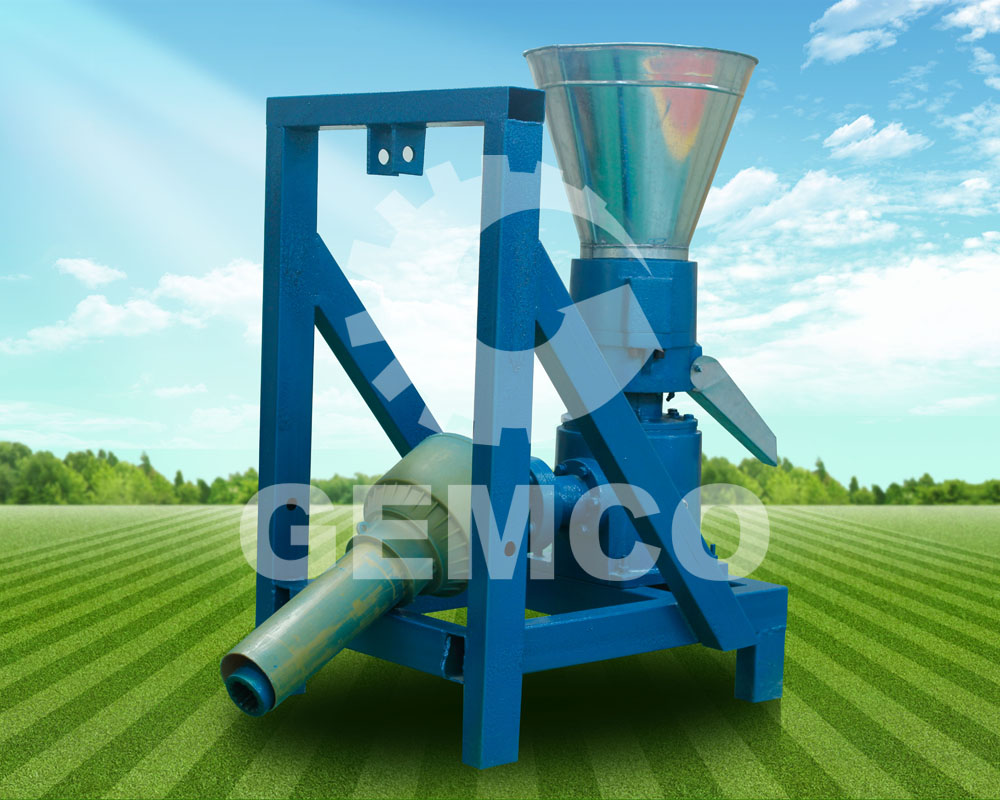

• PTO wood pellet mill is a rising machine in the market and favored by farmers who own a big farm or wood processing factory. It is easy to deal with the wood wastes in the factory and agro-wastes on the farm for farmers

Technical Parameter of PTO Wood Pellet Mill

Model	Power	Capacity	Weight（NW/GW）	Packing Size
ZLSP120P	≥8 HP	40-80 kg/h	80/100 kg	900*540*900mm
		90-180 lbs/h	175/220 lbs	35*21*35inch
ZLSP150P	≥8 HP	50-100 kg/h	90/110 kg	900*540*1020mm
		110-220lbs/h	200/245 lbs	35*21*40inch
ZLSP200P	≥15HP	80-120 kg/h	130/150 kg	1000*540*1020mm
		180-265lbs/h	290/330 lbs	39*21*40inch
ZLSP230P	≥22HP	120-200kg/h	175/200 kg	1000*540*1020mm
		245-440lbs/h	385/440 lbs	39*21*40inch
ZLSP260P	≥30HP	160-250kg/h	235/260 kg	1050*540*900mm
		350-550lbs/h	518/580 lbs	41*21*35inch
ZLSP300P	≥55HP	250-400kg/h	305/330 kg	1100*540*1000mm
		550-880lbs/h	680/730 lbs	43*21*39inch

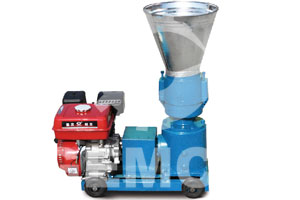

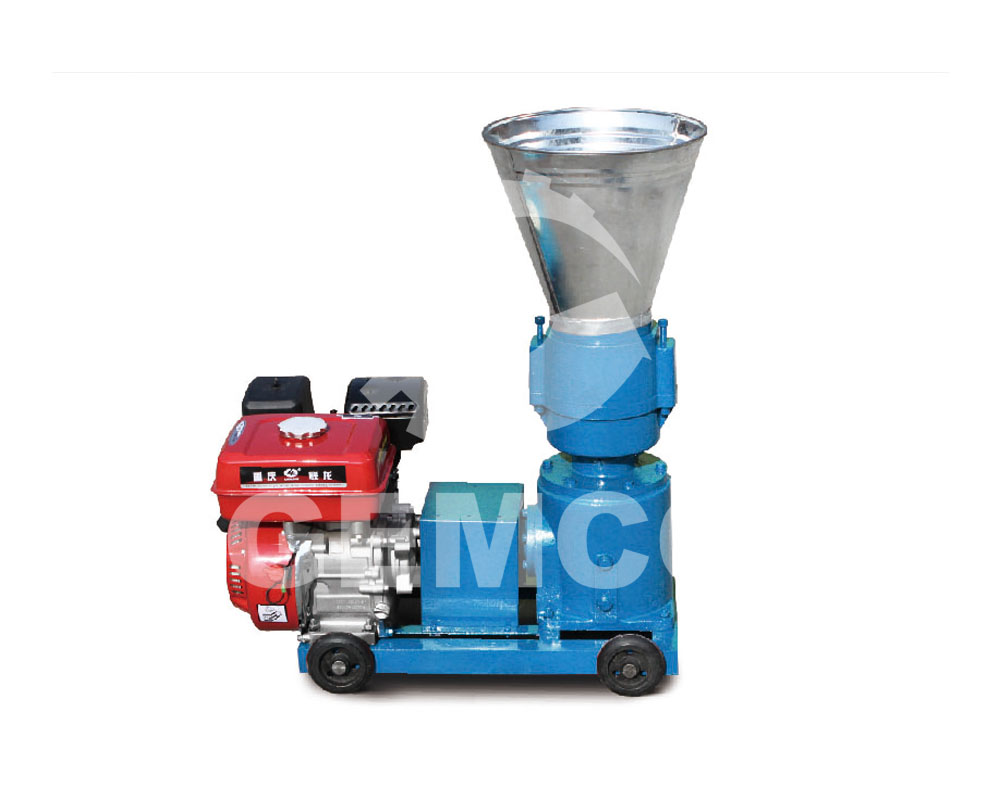

• Gasoline wood pellet mill is also newly machine at the end of last year

	Power	10HP
	Capacity	50-100kg/h
		110-220lbs/h
	Weight	180kg
		400lbs
	Packing Size	1000*500*750mm
Gasoline Wood Pellet Mill		39*20*30inch

Detailed parts of flat die wood pellet mill

Roller and flat die are the most important components. Due to different raw materials, the roller must be anti-bearable and not easy to break. So the roller is made of alloy metal. For the flat die, changing model hole of flat die MHD form can increase the touched area between flat die and roller, which can greatly reduce flat die wear rate and improve life of flat die.


Pellet Mill Die	Pellet Mill Roller	Bearing for Pellet Mill

Application of flat die wood pellet mill

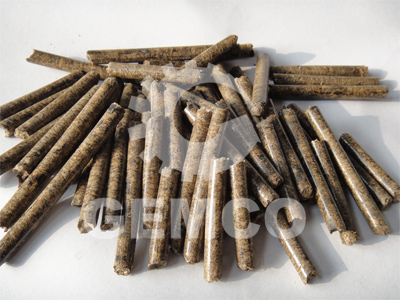

To make pellets with flat die wood pellet mill, the materials should be wood wastes like sawdust, tree branches, wood shavings, and pine tree wastes from wood processing factory and furniture manufacturers. Apart from, the other biomass materials such as corn stalk, peanut shells, sugarcane wastes, coffee husk, bamboo dust, rice husk ant other agro-wastes can be processed into various biomass pellets for various application by our flat die wood pellet mill at home. It is very convenient and easy for you to operate.
