complete wood pellet line

Complete wood pellet line which is usually famous as large scale wood pelleting plant, is required to process wood pellets from pretreated raw material (wood chips, wood shavings and sawdust etc.). A complete wood pellet line generally includes crushing, drying, pelletizing, cooling and packaging. With the help of these pellet equipments, the wood pellet production plant can be operated automatically from raw material processing to finished pellets packing. Usually, there are three main processes for pellet production line: raw material pretreatment system, pelletizing system and packaging system.

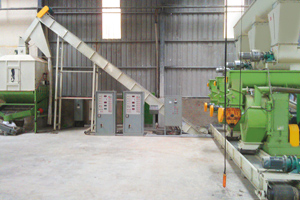

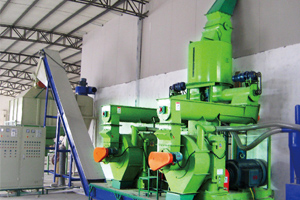

Successful Case of Complete Wood Pellet Line


Raw materials collected are of large size or irregular and excessive moisture content. It is necessary to handle raw materials with wood crusher, hammer mill and dryer to make them meet standard demands.

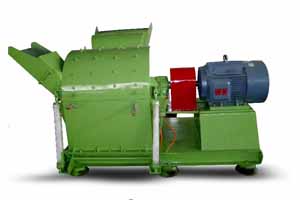

Wood Crusher

	Capacity	Feed diameter	Diameter of output	Motor	Weight	Overall dimensions (mm)
	700 kg/h	≤ø200 mm	Ø3 mm	11 kW	400 kg	1250*700*910

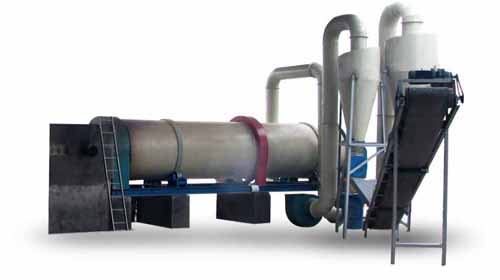

Dryer


Technical Parameters of Dryer

Model	Diameter(mm)	Length(m)	Power(kw)	Speed of rotation (r/min)
HZG6	600	4,5,6,7,8	3-5.5	3-20 adjustment
HZG8	800	4,5,6,7,8,9,10	5.5-7.5
HZG10	1000	6,7,8,9,10,11,12	5.5-7.5
HZG12	1200	6,8,10,12,14,16	7.5-11
HZG15	1500	8,10,12,14,16,18	11-15
HZG18	1800	8,10,12,14,16,18,20	15-18.5
HZG22	2200	10,12,14,16,18,20,22,25	18.5-22
HZG24	2400	12,14,16,18,20,22,25	22-30

In wood pelleting plants, pelletizing system is the most important processing. The pellet mill is mainly referred to the ring die pellet mill applied to process wood material after pretreatment to pellet to pellets. The capacity of this kind of pellet machine can range from 0.5t to 10t each hour. The high efficiency and output will meet customers’ different requests.

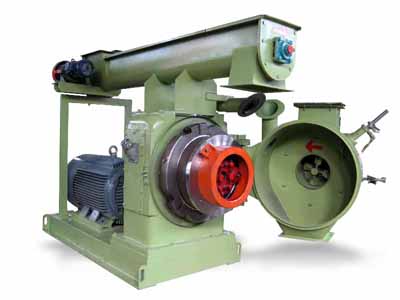

Pellet Machine

Technical Parameters of Pellet  Machine

Model	Capacity	Main motor power	Feeding motor power	Conditioner motor power	Diameter of ring die	Diameter of final wood pellet
KMPM25	0.2-0.3t/h	7.5*2kw	0.75+0.55kw	2.2kw	250	4-8
KMPM35	0.5-0.7t/h	30*2kw	0.75+0.55kw	2.2kw	350	4-8
KMPM42	1.0-1.5t/h	90kw	1.5kw	3kw	420	6,8,10,12
KMPM50	1.5-2.0t/h	110kw	1.5kw	3.7kw	508	6,8,10,12

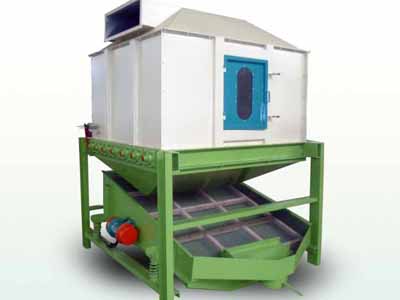

Cooler


Technical Parameters of Cooler

Model	SKLN 14	SKLN 19	SKLN 22
Cooling Volume (m3)	2.5	5	8
Output (t/h)	1-2	3-5	6-8
Air-absorbed (m3/h)	10000	15000	27000
Power (kw)	3	3	2.5+1.5

After pelletizing system, the wood pellets should be cooled otherwise it is not easy to store and transport. Avoiding to the pellets being damped and degeneration, a bagging machine is essential. These two pellet equipments will help us store and transport wood pellets well.

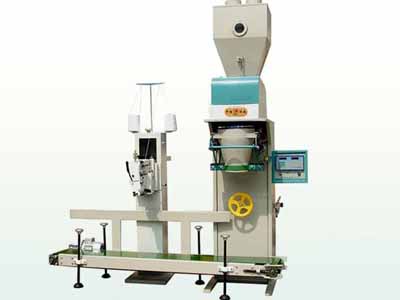

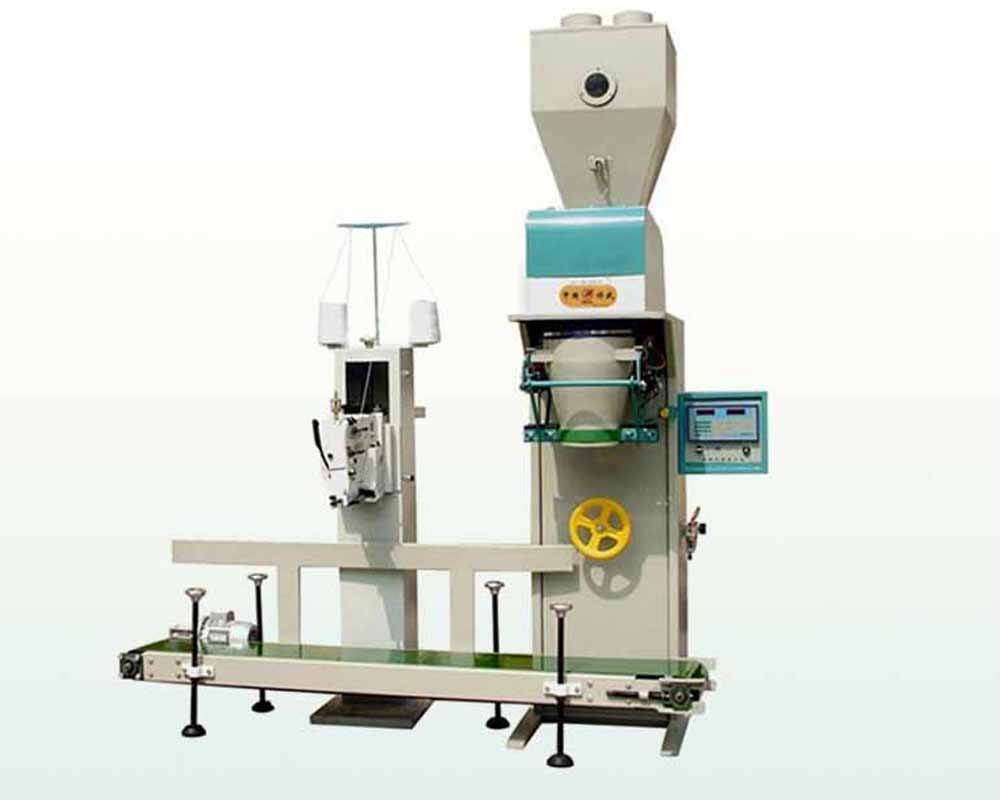

Pellet Packing Machine


GEMCO is specialized in manufacturing and offering various complete wood pellet production plant. We have developed various kinds and types of pelletizing equipments by our engineers’ and workers’ hard working. The complete wood pellet line is especially designed for customers who want to run a large scale wood pellets production with commercial and industrial purposes. If who is looking for the complete wood pellet line information, please visit our website to get more knowledge and our customer service staff are ready to provide full and professional suggestion to you.
